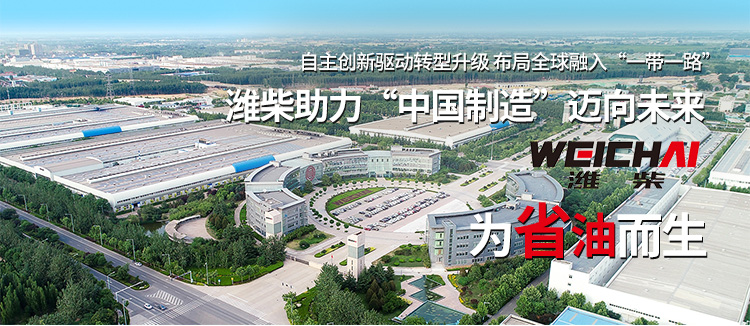

潍柴动力股份有限公司成立于2002年，作为行业开创者，公司于2002年率先完成H股上市。率先采用换股吸收合并方式，成功实现两地上市。在此之前，中国内燃机行业尚无企业在H股上市。分子公司遍及欧洲、北美、亚洲等地区，产品远销150多个国家和地区。 拥有内燃机与动力系统全国实验室、国家燃料电池技术创新站点、国家工业设计站点、国家内燃机产品质量检验检测站点、国家内燃机产业计量测试站点、国家认定企业技术站点等国家创新平台，设有“博士后工作站”等研究基地，在全球多地设立十大前沿创新站点，建立了全球协同研发体系。潍柴动力模范履行企业社会责任，积极践行绿色低碳高质量发展，带领装备制造产业链迈向未来、共赢发展。
Weichai Power Co., Ltd. was established in 2002. As an industry pioneer, the company took the lead in completing its H-share listing in the same year. It was also the first to adopt a share swap and merger absorption model, successfully achieving a dual listing. Prior to this, no enterprise in China's internal combustion engine industry had been listed on the H-share market. Its subsidiaries and branches are spread across Europe, North America, Asia, and other regions, with products exported to over 150 countries and territories.
The company possesses a range of national innovation platforms, including the National Laboratory of Internal Combustion Engine and Power Systems, the National Fuel Cell Technology Innovation Center, the National Industrial Design Center, the National Internal Combustion Engine Product Quality Inspection and Testing Center, the National Internal Combustion Engine Industry Measurement and Testing Center, and the Nationally Recognized Enterprise Technology Center. It also hosts research bases such as the "Postdoctoral Workstation" and has established ten cutting-edge innovation hubs in multiple locations worldwide, forming a globally coordinated research and development system. Weichai Power exemplarily fulfills its corporate social responsibilities, actively pursues green, low-carbon, and high-quality development, and leads the equipment manufacturing industry chain toward a future of shared growth and mutual success.
| 一、柴油发电机组参数Parameters of diesel generator sets | |||||||
| 机组型号 Unit model | 电压 (V) Voltage | 频率 (Hz) Frequency | 相数 Phase | 功率因数 PF | 电流 A Current | 常用功率kw/kva Common power | 备用功率kw/kva Standby power |
| LHGF-600 | 400V/230V | 50 | 3 | 0.8 | 1080A | 600KW/750KVA | 660KW/825KVA |
| LHGF-600 | 220V/127V | 60 | 3 | 0.8 | 1970A | 600KW/750KVA | 660KW/825KVA |
| 1. 发动机功率与海拔高度关系：海拔高度1500米以上，每升高300米，功率下降4%。海拔不可高3000米 Relationship between engine power and altitude: Above 1500 meters, power decreases by 4% The altitude cannot be higher than 3000 meters for every 300 meters increase. 2. 发动机功率与环境温度关系：环境温度高40摄氏度时，每超过10摄氏度，发动机功率降低3%。 Relationship between engine power and ambient temperature: When ambient temperature is above 40 ° C, engine power decreases by 3% for every 10 ° C. | |||||||
| 二、柴油机（引擎）技术参数Technical parameters of diesel engines | |
| 发动机品牌: Enginebrand: | 潍柴动力/潍柴动力股份有限公司 weichai power / Weichai Power Co Ltd |
| 发动机型号: Enginemodel: | 6M33D670E200 |
| 发动机功率: Thepoweroftheengine | 670KW |
| 气缸型式: Cylindertype | 6缸L列、4冲程 6 cylinder, 4 stroke L |
| 缸径*行程: Bore*stroke: | 150*158 (mm) |
| 吸气方式: Aspiration | 涡轮增压带中冷 Turbocharged with intercooler |
| 额定转速: Ratedspeed | 1500rpm |
| 燃油消耗率： Fuelconsumptionrate: | ≤195g/kW·h |
| 排量: Displacement: | 19.6L |
| 冷却方式: Coolingmode | 强制水冷 Forced water cooling |
| 调试稳定性: Debuggingstability | ≤5％ |
| 启动方式: Startup mode: | DC24V |
| 三、发电机参数（Electric machine parameters）： | |
| 发电机品牌： Generator brand： | 互泰发电机 HUTAI generator |
| 发电机型号： Generator model： | HTW-600 |
| 额定功率： Rated power | 600KW |
| 额定电压： Rated voltage： | 400V/230V 220V/380V |
| 额定电流： Rated current: | 1080A |
| 额定频率： Rated frequency： | 50Hz |
| 额定转速： Rated speed： | 1500rpm |
| 励磁方式： Excitation mode： | 无刷自励 Brushless self excitation |
| 电压调整范围： Voltage regulation range | ≥5％ |
| 电压波动范围： Voltage fluctuation range: | ≤±5％ |
| 绝缘等级： Insulation grade: | H |
| 防护等级： Protection level: | IP21 |
| 四、机组另选配置The unit configuration is optional： | ||
| 电瓶浮充电器 Battery float charger | ATS自动负载转换屏 ATS automatic load conversion screen | |
| 防雨型机组 Rainproof unit | 静音型机组（箱柜） Silent type unit (cabinet) | |
| 分体式日用燃油箱、一体式底座燃油箱 Split-type daily-use fuel tanks and integrated base fuel tanks | 带远程监控“三遥”功能机组控制屏 Control panel of the unit with remote monitoring "three-remote" function | |
| 移动拖车型电站 Mobile trailer type power station | 机油、柴油、水套、防冷凝加热器 Engine oil, diesel, water jacket, anti-condensation heater | |
| ATS全自动开关ATS automatic switch | |
| 保护功能：保证主电源故障时自动切换到备用电源，保证供电的连续性。Protective function：ensure automatic switching to backup power supply in case of main powerfailure, thereby ensuring the continuity of power supply. |
|
| 多台机组并机柜 Multiple units are paralleled in a cabinet | |
| 并联柜是一种专用配电柜，用于多台发电机组（不间断电源）并联运行。实现多台发电机组的同步输出、电流共享控制和系统管理，为关键负载提供更大功率、更高可靠性的冗余不间断电源保护 A parallel cabinet is a specialized distribution cabinet used to operate multiple gensets (uninterruptible power supplies) in parallel. It realizes synchronous output, current sharing control, and system management of multiple gensets, providing greater power and higher reliability redundant uninterruptible power supply protection for critical loads. |  |
| 远程控制Remote control | |
| 远程控制可实现对发电机组的实时监控、远程启停、参数调整、故障预警等功能，确保设备稳定运行，显著提高运维效率，特别适用于无人电站或应急供电场景Remote control enables real-time monitoring, remote start stop, parameter adjustment, and fault warning of generator sets, ensuring stable equipment operation and significantly improving operation and maintenance efficiency, especially suitable for unmanned power stations or emergency power supply scenarios |  |
| 机组尺寸及结构Unit size and structure | |
| 开式发电机组的尺寸 Dimensions of open type genset | 静音式发电机组的尺寸 The dimensions of the silent generator set |
| L*W*H 3800*1600*2050（mm） | L*W*H 4800*1900*2550（mm） |
| Weight 4650（Kg） | Weight 5950 （Kg） |

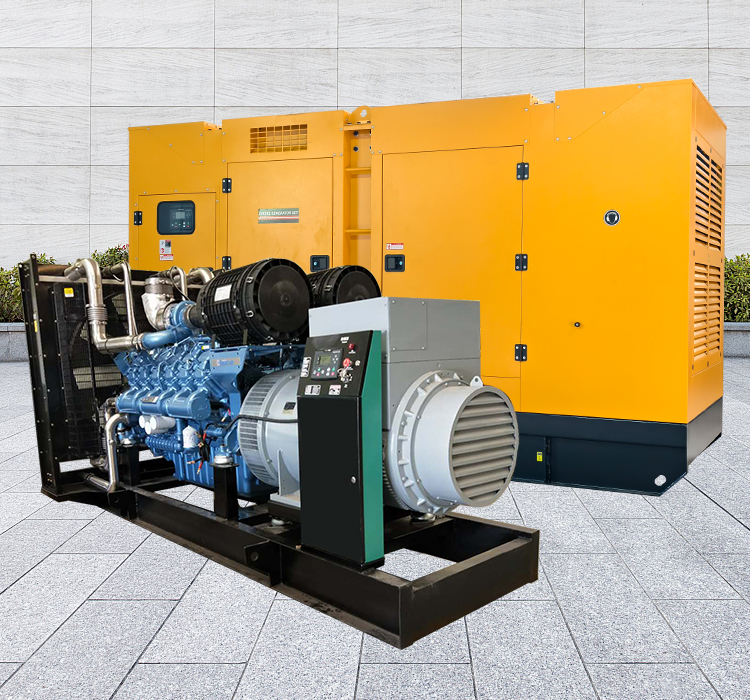

产品订购：600KW潍柴动力柴油发电机组，工程工地工厂适用
